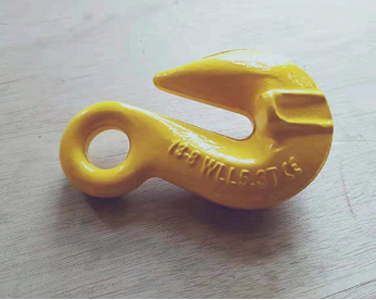

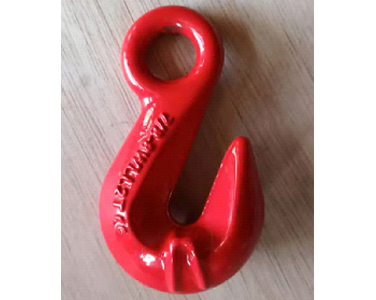

G80 Eye Shortening grab hook with wings

G80 Eye Shortening grab hook with wings

Product Features:

Forged alloy steel, Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Proof test at 2.5 times Working Load Limit

Ultimate load is 4 times Working Load Limit

Surface Finish：Powder Plastified

Regular mark: size, WLL, CE

Package: Carton, Plywood/Steel pallet




Product code Size Kg/pc WLL/T B.L/T
HLF80P01 6-8 0.175 1.2 4.8
HLF80P02 7/8-8 0.307 2 8
HLF80P03 10-8 0.750 3.2 12.8
HLF80P04 13-8 1.400 5.4 21.6
HLF80P05 16-8 2.300 8.2 32.8
HLF80P06 20-8 4.600 12.8 51.2
HLF80P07 22-8 8.200 16 64
HLF80P08 26-8 9.800 21.2 84.8
HLF80P09 32-8 19.400 31.5 126
