G80 Clevis Shortening grab hook with wings

G80 Clevis Shortening grab hook with wings

Product Features:

Forged alloy steel, Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Proof test at 2.5 times Working Load Limit

Ultimate load is 4 times Working Load Limit

Surface Finish：Powder Plastified

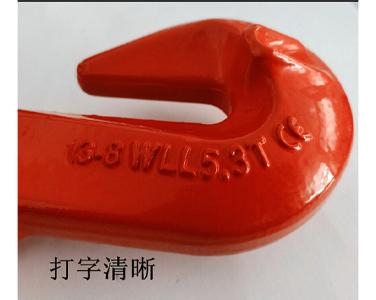

Regular mark: size, WLL, CE

Package: Carton, Plywood/Steel pallet




Product code Size Kg/pc WLL/T B.L/T
HLF81P01 6-8 0.245 1.2 4.8
HLF81P02 7/8-8 0.32 2 8
HLF81P03 10-8 0.73 3.2 12.8
HLF81P04 13-8 1.6 5.4 21.6
HLF81P05 16-8 2.8 8.2 32.8
HLF81P06 20-8 4.13 12.8 51.2
HLF81P07 22-8 6.3 16 64
HLF81P08 26-8 - 21.2 84.8
HLF81P09 32-8 - 31.5 126
