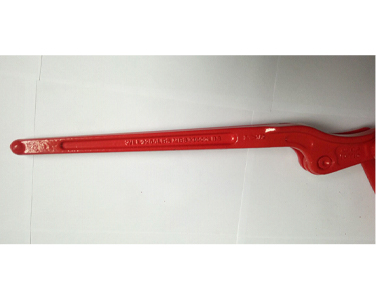

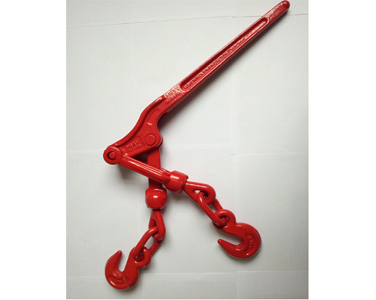

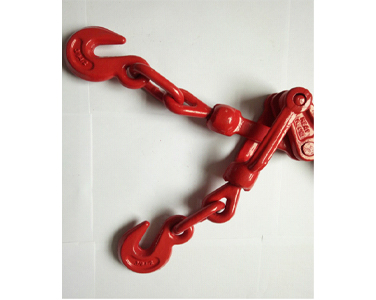

STANDARD LOAD BINDERS 150

STANDARD LOAD BINDERS 150


Product Features:

1. Drop forged. Carbon steel. Quenched and Tempered.

Load binders should never be used for lifting applications

Use load binder to tighten chains, It helps reduce the risk of kickback while releasing loads.

2. Match the working load limit of Grade 70 and Grade 43 chains

3. Surface Finish：Powder Coated

4. Marking:SIZE. WLL or as per customers' request.

5. Package:Carton.  Plywood/Steel pallet



Product Code Size (in) W.L.L (lbs)  Proof Load (lbs) Min Ultimate Load (lbs) Kg/pc Handle Length Dimensions(in)
A B C D E F G
HLF01F01 1/4-5/16 2200 4400 7800 1.6 11.42 18.5 17.3 14.17 11.42 8.27 8.07 0.35
HLF01F02 5/16-3/8 5400 10800 19000 4.773 15.43 25.2 23.2 19.49 15.55 11.22 11.22 0.51
HLF01F03 3/8-1/2 6600 10800 19800 4.891 17.24 28.5 26.38 22.05 17.64 12.99 12.2 0.59
HLF01F04 3/8-1/2 9200 18400 33000 5.864 17.24 28.5 26.38 22.05 17.64 12.99 12.2 0.59
HLF01F05 1/2-5/8 13000 26000 46000 6.536 21 33.86 30.12 25.87 20.87 14.37 14.37 0.74
