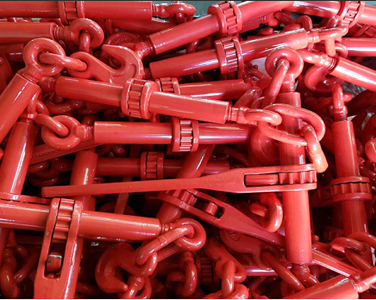

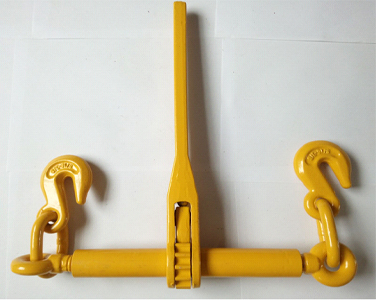

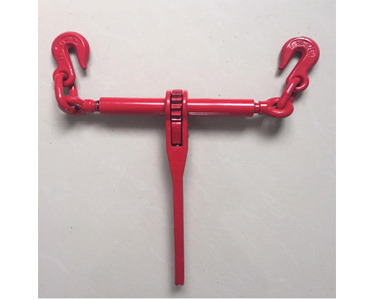

Ratchet Load Binders 140

Ratchet Load Binders 140

Product Features:

1. Drop forged. Carbon steel. Quenched and Tempered.

Load binders should never be used for lifting applications

Use load binder to tighten chains, It helps reduce the risk of kickback while releasing loads.

2. Match the working load limit of Grade 70 and Grade 43 chains

3. Surface Finish：Powder Coated

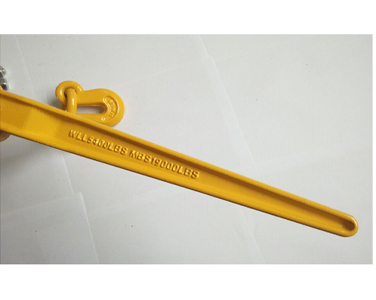

4. Marking:SIZE. WLL or as per customers' request.

5. Package:Carton.  Plywood/Steel pallet




Product Code Size (in) W.L.L (lbs)  Proof Load (lbs) Min Ultimate Load (lbs) Kg/pc Handle Length Dimensions(in)
A B D E E1 F1 F1
HLF02F01 1/4-5/16 2200 4400 7800 1.6 7.16 7.16 0.89 1.77 16.22 21.62 17.79 0.35
HLF02F02 5/16-3/8 5400 10800 19000 4.773 13.42 13.92 1.3 2.6 22.64 30.64 25.24 0.51
HLF02F03 5/16-3/8 6600 10800 19800 4.891 13.42 13.92 1.3 2.6 22.64 30.64 25.24 0.51
HLF02F04 3/8-1/2 9200 18400 33000 5.864 13.92 13.92 1.3 2.6 24.13 32.13 27.04 0.59
HLF02F05 1/2-5/8 13000 26000 46000 6.536 13.92 13.92 1.3 2.6 26.45 34.45 30.07 0.74
