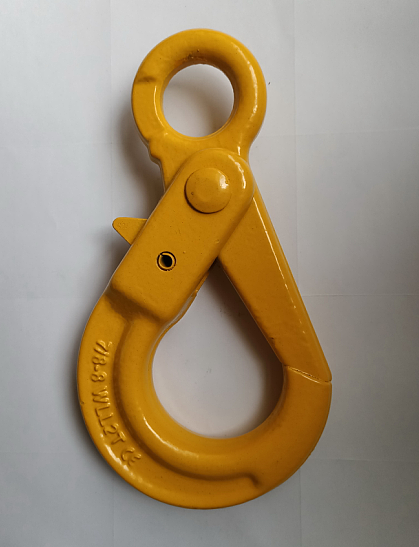

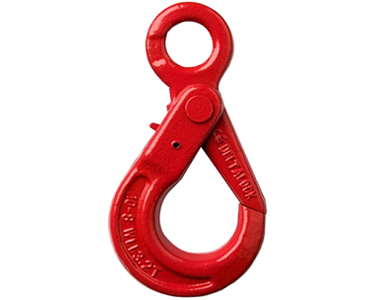

G80 Eye self locking safety hook

G80 Eye self locking safety hook



Product Features:

Forged alloy steel, Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Proof test at 2.5 times Working Load Limit

Ultimate load is 4 times Working Load Limit

Surface Finish:Powder Plastified

Regular mark: size, WLL, CE

Package: Carton, Plywood/Steel pallet




Product code Size Kg/pc WLL/T B.L/T
HLF77P01 6-8 0.5 1.2 4.8
HLF77P02 7/8-8 0.8 2 8
HLF77P03 10-8 1.5 3.2 12.8
HLF77P04 13-8 3.2 5.4 21.6
HLF77P05 16-8 6.1 8.2 32.8
HLF77P06 18/20-8 7.5 12.5 50
HLF77P07 22-8 13.4 15 60
HLF77P08 26-8 14.5 21.2 84.8
HLF77P09 32-8 - 31.5 126
