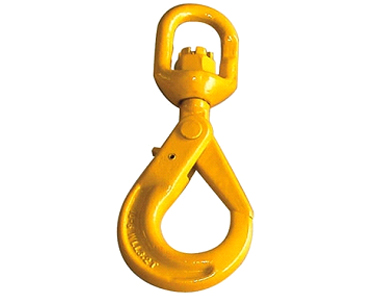

G80 Swivel self locking safety hook

G80 Swivel self locking safety hook

Product Features:

Forged alloy steel, Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Proof test at 2.5 times Working Load Limit

Ultimate load is 4 times Working Load Limit

Surface Finish:Powder Plastified

Regular mark: size, WLL, CE

Package: Carton, Plywood/Steel pallet




Product code Size Kg/pc WLL/T B.L/T
HLF79P01 6-8 0.7 1.2 4.8
HLF79P02 7/8-8 1.3 2 8
HLF79P03 10-8 2.2 3.2 12.8
HLF79P04 13-8 0.5 5.4 21.6
HLF79P05 16-8 8.2 8.2 32.8
HLF79P06 18/20-8 11.7 12.5 50
HLF79P07 22-8 16 15 60
HLF79P08 26-8 21.5 21.2 84.8
HLF79P09 32-8 - 31.5 126
