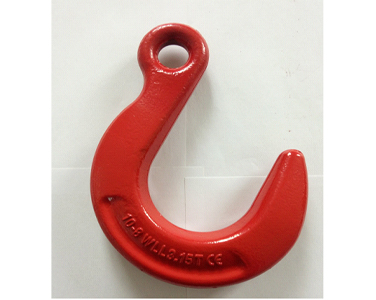

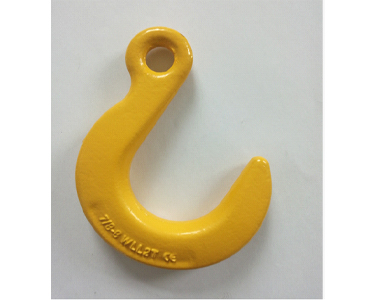

G80 Eye Foundry Hook

G80 Eye Foundry Hook

Product Features:

Forged alloy steel, Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Proof test at 2.5 times Working Load Limit

Ultimate load is 4 times Working Load Limit

Surface Finish：Powder Plastified

Regular mark: size, WLL, CE

Package: Carton, Plywood/Steel pallet



Product code Size Lbs/pc WLL/Lb B.L/Lb
HLF15P01 1/4" 2.4 3500 14000
HLF15P02 3/8" 4.5 7100 28400
HLF15P03 1/2" 7.1 12000 48000
HLF15P04 5/8" 12.2 18100 72400
HLF15P05 3/4" 19.3 28300 113200
HLF15P06 7/8" 26.3 34200 136800
