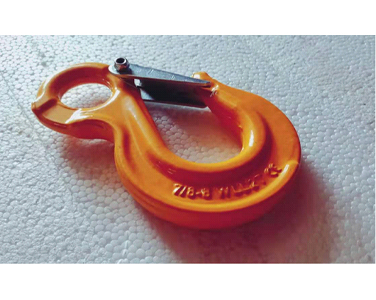

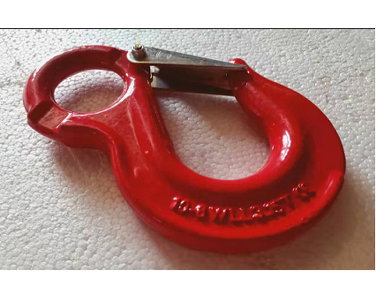

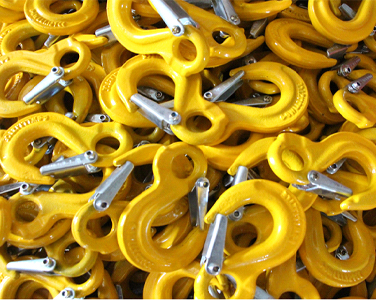

G80 EYE SLING HOOK WITH LATCH

G80 EYE SLING HOOK WITH LATCH


Product Features:

Forged alloy steel, Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Proof test at 2.5 times Working Load Limit

Ultimate load is 4 times Working Load Limit

Surface Finish：Powder Plastified

Regular mark: size, WLL, CE

Package: Carton, Plywood/Steel pallet




Product code Size Kg/pc WLL/T B.L/T
HLF13P01 6-8 0.244 1.25 5
HLF13P02 7/8-8 0.4 2 8
HLF13P03 10-8 0.92 3.2 12.8
HLF13P04 13-8 2.15 5.4 21.6
HLF13P05 16-8 2.97 8.2 32
HLF13P06 20-8 6.36 12.5 51.2
HLF13P07 22-8 8.2 15 60
