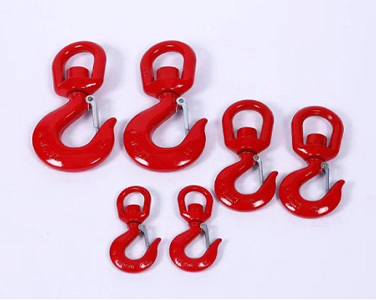

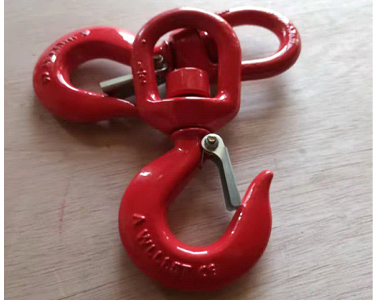

322A/C Swivel hoist hook with latch

322A/C Swivel hoist hook with latch

Product Features:

Forged, Quenched and Tempered.

Available in carbon steel and alloy steel

Alloy steel:Ultimate load is 4.5 times Working Load Limit

Carbon steel: Ultimate load is 5 times Working Load Limit

Surface Finish：Powder Plastified

Regular mark: size

Package: Carton, Plywood/Steel pallet




Product Working Load Limit(tons) Dimensions(in) Weights Weights
 Code  (lbs)  (lbs)
Carbon Alloy A B C D  w/latch
HLF06G01 3/4 1 3/8 15/16 15/16 415/32 0.75 0.77
HLF06G02 1 1 1/2 1/2 15/16 11/32 59/32 1.25 1.27
HLF06G03 1 1/2 2 5/8 15/8 11/16 61/64 2.25 2.28
HLF06G04 2 3 5/8 19/16 17/32 63/8 2.57 2.6
HLF06G05 3 4 1/2 3/4 13/4 11/2 713/32 4.75 4.81
HLF06G06 5 7 1 25/16 17/8 919/32 10.29 10.4
HLF06G07 7 1/2 11 1-1/8 23/8 21/4 111/8 161/4 163/7
HLF06G08 10 15 1-1/4 2 13/16 21/2 11 15/16 23.25 23.4
