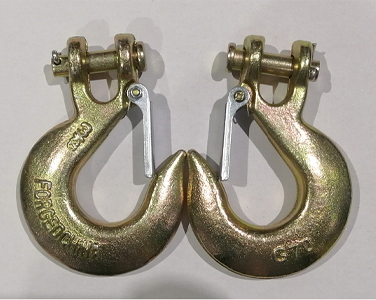

CLEVIS SLIP HOOKS WITH LATCH H331/A331

CLEVIS SLIP HOOKS WITH LATCH H331/A331

Product Features:

Forged, Quenched and Tempered.

Size：1/4" 5/16" 3/8" 1/2"

Surface Finish:Electic galvanised or Color painted

Max proof load is 2.5 times of the working load limit

Min.Breaking strength is 4 times of the WLL

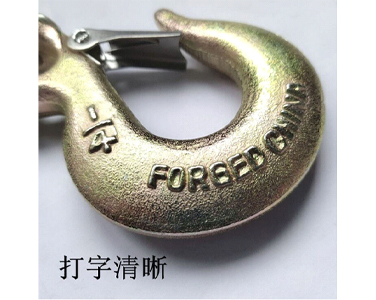

Marking:SIZE,FORGED, GRADE

Package:Carton, Plywood/Steel pallet




Product Code Size of chain Working Load Limit(lbs) Dimensions(in) Weights (lbs)
Slip Hook Application
H-331 A-331 B E P R
HLF02G01 1/4” 1950 2750 7/16 15/16 3/8 2-9/16 0.5
HLF02G02 5/16” 2875 4300 13/32 1-1/16 7/16 2-23/32 0.75
HLF02G03 3/8” 4000 5250 19/32 1-5/16 15/32 3-1/4 1.2
HLF02G04 7/16” 5000 7000 9/16 1-9/16 9/16 3-21/32 2.06
HLF02G05 1/2” 6500 9000 3/4 1-11/16 5/8 4 2.75
HLF02G06 5/8” 9250 13500 13/16 2 3/4 4-15/16 4.75
HLF02G07 3/4” - 19250 1-5/16 2-1/2 1 6-3/32 10.3
