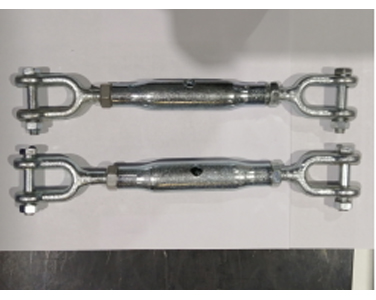

TURNBUCKLES RIGGING SCREW

TURNBUCKLES RIGGING SCREW

Product Features:

1. Size：From M6 to M30

2. Carbon steel.

3. Surface Finish:Electric galvanised

4. Package：PP Bag / Carton.  Plywood/Steel pallet



Product Code SWL A B C D E Weigh
m．Tons DIA SCREW LENGTH OF BODY DIA OF BODY JAW OVEAL EYE PER
DIAI(mm) INSIDE(mm) DIA(mm) INSIDE (mm) piece
D1 D2 LengthD3 HidthD4  E1 Length  E2 Hidth E3 kg
HLF06B01 0.1 6 102 12 3 5 15 7 6 15 8 0.11
HLF06B02 0.15 8 110 15 4 6 16 9 7 19 10 0.23
HLF06B03 0.375 10 152 21 5 8 21 11 8 25 11 0.28
HLF06B04 0.5 12 175 27 6 10 25 13 11 30 14 0.8
HLF06B05 0.75 16 229 27 10 12 40 18 14 41 16 1.4
HLF06B06 1.125 20 229 33 12 16 45 20 16 51 22 2
HLF06B07 1.6 22 305 33 15 18 48 24 16 51 22 3.5
HLF06B08 2 24 325 42 16 22 65 28 19 57 25 4
HLF06B09 2.75 28 356 48 18 22 59 30 19 57 28 4.5
HLF06B10 3.75 33 381 48 20 27 62 34 22 65 35 6.5
HLF06B11 4.25 35 381 60 22 28 68 38 22 65 36 8
HLF06B12 5 39 406 60 24 33 74 42 25 74 38 11．O0
