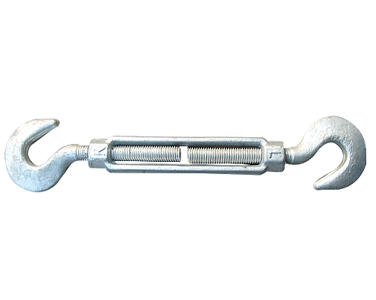

US TYPE Drop forged turnbuckle, HOOK&HOOK HG-223

US TYPE Drop forged turnbuckle, HOOK&HOOK HG-223


Product Features:

1. Size：From 1/4"X4" to 2-3/4"X24"

2. Drop forged. Carbon steel.

Proof load  is 2.5 times the working load limit. Ultimate Load is 5 times working load limit

3. Surface Finish is usually Electric galvanised or hot dip galvanised

4. Marking:SIZE. R. L. or as per customers' request.

5. Package：PP Bag / Carton.  Plywood/Steel pallet




Product Code  Size(Diameter ×Take-Up) Acerage Ocerall Length  with Ends   in Closed position  Approx. Weight Each(Ibs) Work Load Limitpounds
Eyes and/ or Hooks Jaw&Eye Jaw&Jaw  Stub End Bodies  Only  Hook&Hook Hook&Eye    Eye&Eye Jaw&Eye Jaw&Jaw Stub Eed
HLF0lB0l l／4”×4” 81/4 0.3 0.3 0.4 0.29 0.17 400 500
HLF01B02 5/16”×41/2” 99／16 0.5 0.35 0.58 0.46 0.25 700 800
HLF01B03 3／8”×6” 117／8 0.75 0.82 0.93 0.75 0.3 1 12
HLF0lB04 1／2”×6” 135／16 1.5 1.62 1.68 1.36 0.55 1.5 2.2
HLF01B05 1／2”×9” 165／16 1.75 1.82 1.85 1.69 0.74 1.5 2.2
HLF01B06 1/2”×l2” 195／16 2.18 2.19 2.2 2 0.93 1.5 2.2
HLF01B07 5／8“×6” 151／2 2.63 2.59 2.82 2.15 0.91 2.25 3.5
HLF01B08 5／8“×9” 181／2 3 3.01 3.25 2.7 1.2 2.25 3.5
HLF0lB09 5/8”×12” 211／2 3.25 3.5 3.75 3.22 1.5 2.25 3.5
HLF01B10 3／4”×6” 17 3.75 4.25 4.68 3.25 1.3 3 5.2
HLF01B11 3／4“×9” 20 4.5 5 5.38 4 1.7 3 5.2
HLF01B12 3/4”×l2” 23 5.75 5.75 6.12 4.65 2.12 3 5.2
HLF01B13 3/4”×18” 29 7 7.25 7.25 6.12 2.93 3 5.2
HLF01B14 7／8”×6” 18 - - - 4.75 2 4 7.2
HLFOIBl5 7/8”×12” 245／8 8.38 8.88 9.36 6.67 3 4 7.2
HLF01B16 7/8”×l8” 305／8 10.25 10.6 11.44 8.75 4.12 - 7.2
HLFOlBl7 1”×6” 205／8 - - - 6.41 2.5 5 10
HLF01B18 1”×l2” 265／8 11.25 12 12.88 8.9 3.86 5 10
HLFOlBl9 1”×18” 325／8 14 14.75 16.1 11.7 5.5 5 10
HLF0lB20 1”×24” 385／8 17 17.75 18.6 14.3 7 - 10
HLFOlB2l 11/4”×6” 20 - - - 10.4 4 - 15.2
HLF01B22 11／4”×l2 297／8 19 21.2 23.6 14.2 5.93 - 15.2
HLF01B23 11/4”×18” 357／8 24.1 26 26.6 18 8 - 15.2
HLF01B24 11/4”×24” 417／8 25 28.7 31.2 21.8 10 - 15.2
HLFOlB25 11/2”×6” 221／2 - - - 15.4 5.8 - 21.4
HLFO1B26 11/2”×12” 323／8 27 31.1 35.5 20.5 8.4 - 21.4
HLF01B27 11/2”×18” 383／8 31.2 36.4 40.7 26.2 11.5 - 21.4
HLF0lB28 11/2”×24” 443／8 38.2 44.2 47.6 31.4 14.1 - 21.4
HLFOlB29 13/4”×6” - - - - 22.7 8.75 - 28
HLF01B30 13/4”×18” 413／4 45 48.8 52.4 - - - 28
HLF01B31 13/4”×24” 473／4 58 60 64 43.9 19.5 - 28
HLF01B32 2”×6” - - - - 31.5 12.5 - 37
HLFOlB33 2”×24” 513／4 90 102 115 60.3 27.5 - 37
HLF01B34 21/2”×6” - -. - - 60.8 27 - 60
HLFOlB35 21/2”×24” 581／2 183 180 200 110 54 - 60
HLF0lB36 23/4”×24” 611／2 180 214 248 - 54 - 75
