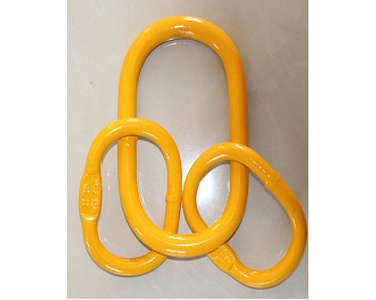

G80 WELDED MASTER LINK ASSEMBLY A347

G80 WELDED MASTER LINK ASSEMBLY A347

Product Features:

Main link and Sub link both welded.

Alloy steel,quenched and tempered.

Proof load at 2 times Working Load Limit

Surface Finish：Powder Plastified

Regular mark:Size, WLL

Package: Carton, Plywood/Steel pallet

For chain sling:Minimum ultimate load is 4 times working load limit

For steel rope sling:Minimum ultimate load is 5 times working load limit




Product code Size Kg/pc WLL/T B.L/T D A B
HLF124P01 1/2” 0.83 2 10 14 100 60
HLF124P02 1-1/8” 1.65 2.6 13 18 160 90
HLF124P03 3/4” 2.12 4 20 20 160 90
HLF124P04 7/8” 3.4 6.4 32 22 180 100
HLF124P05 1-1/8” 6.74 9.6 48 28 270 140
HLF124P06 1-1/4” 9.4 13.6 68 32 270 140
