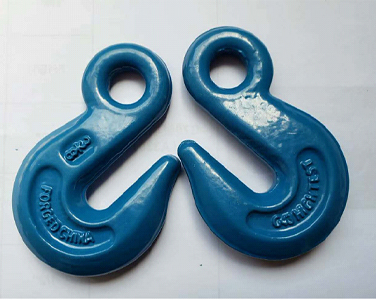

EYE GRAB HOOKS H323/A323

Name:EYE GRAB HOOKS H323/A323

Details

Product Features:

Forged, Quenched and Tempered.

Size:1/4" 5/16" 3/8" 1/2"

Surface Finish:Electic galvanised or Color painted

Max proof load is 2.5 times of the working load limit

Min.Breaking strength is 4 times of the WLL

Marking:SIZE,FORGED, GRADE

Package:Carton, Plywood/Steel pallet




Product Size of chain Working Load Limit(lbs) Dimensions(in) Weights
Code H-323 A-323 B E R (lbs)
HLF03G01 1/4” 2600 3600 1/2 11/32 1-31/32 0.28
HLF03G02 5/6” 3900 5400 16/9 7/16 2-1/4 0.45
HLF03G03 3/8” 5400 7500 32/21 1/2 2-9/16 0.79
HLF03G04 1/2” 9200 12750 8/7 21/32 3-3/8 1.75
HLF03G05 5/8” 12750 19000 1-1/16 25/32 4-3/32 3.25
HLF03G07 3/4” 18500 27000 1-3/8 15/16 5-5/32 5.94
