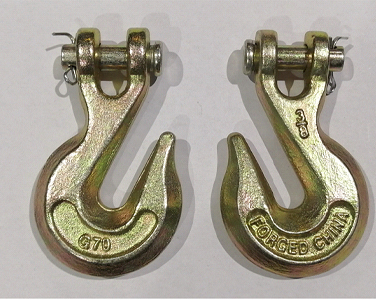

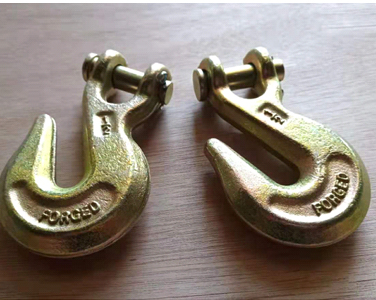

CLEVIS GRAB HOOKS H330/A330

Name:CLEVIS GRAB HOOKS H330/A330

Details

Product Features:

Forged, Quenched and Tempered.

Size:1/4" 5/16" 3/8" 1/2"

Surface Finish:Electic galvanised or Color painted

Max proof load is 2.5 times of the working load limit

Min.Breaking strength is 4 times of the WLL

Marking:SIZE,FORGED, GRADE

Package:Carton, Plywood/Steel pallet




Product Size of chain WLL(lbs) Dimensions(in) Weights
Code H-330 A-330 B E P R (lbs)
HLF01G01 1/4” 2600 3600 7/6 11/32 3/8 1-13/16 0.38
HLF01G02 5/16” 3900 5400 1/2 7/16 3/8 2-5/32 0.7
HLF01G03 3/8” 5400 7500 19/32 1/2 7/16 2-15/32 1.04
HLF01G04 7/16” 7200 1000 21/32 9/16 9/16 2-25/32 1.31
HLF01G05 1/2” 9200 12000 3/4 5/8 5/8 3-7/32 2.06
HLF01G06 5/8” 12750 19000 29/32 3/4 3/4 4-3/32 4.25
HLF01G07 3/4” 18500 27000 15/16 15/16 7/8 4-5/8 6.5
