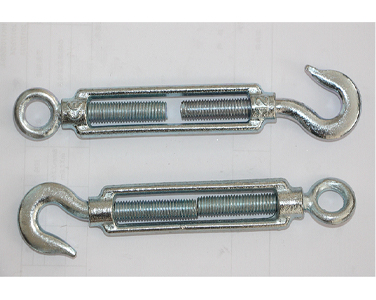

DIN1480 TURNBACKLES HOOK&HOOK/HOOK&EYE/ EYE&EYE

DIN1480 TURNBACKLES HOOK&HOOK/HOOK&EYE/ EYE&EYE

Product Features:

1. Size:From M5 to M36

2. Carbon steel.

3. Surface Finish:Electric galvanised

4. Package:PP Bag / Carton.  Plywood/Steel pallet




dl M6 M8 M10 M12 M16 M20 M24 M26 M30 M36 M42 M48
Product HLF03 HLF03 HLF03 HLF03 HLF03 HLF03 HLF03 HLF03 HLF03 HLF03 HLF03 HLF03
Code B01 B02 B03 B04 B05 B06 B07 B08 B09 Bl0 Bll B12
d2 12 15 18 21 27 34 39 45 55 63 80 80
e 19 23 30 34 42 52 60 74 86 104 135 135
f 9 1l 14 16 20 24 28 34 40 50 65 65
h min 6 8 9 11 14 17 20 23 28 32 40 40
L1 110 110 125 125 170 200 255 255 295 330 355 355
m1 12 15 18 2l 27 34 39 45 55 63 78 78
m2max 6 8 9 1l 14 17 20 23 28 32 39 39
