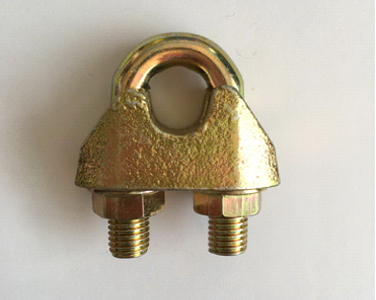

Name：Din1142 Galv Malleable Wire Rope Clips
Details
Product Features:
1.Size：From 5mm to 40mm
2.Material: Malleable Iron, Stainless steel 304 or 316
3.Surface: Electric galvanised or others
4.Technology : Casting
5. Marking:SIZE. or as per customers' request.
6. Usage: For Fixing the wire rope.
7. Package: Gunny bag or carton and pallet / by customer requirements.
| Product Code | Size/mm | Dimensions(mm) | Weight Each (Kg/pc) | |||||
| A | B | C | D | F | G | |||
| HLF04C01 | 5 | 12 | 13 | 13 | 5 | 25 | 25 | 0.021 |
| HLF04C02 | 6.5 | 14 | 16 | 14 | 6 | 30 | 32 | 0.04 |
| HLF04C03 | 8 | 18 | 20 | 20 | 8 | 39 | 41 | 0.082 |
| HLF04C04 | 10 | 20 | 20 | 24 | 8 | 40 | 46 | 0.092 |
| HLF04C05 | 13 | 27 | 28 | 30 | 12 | 55 | 64 | 0.275 |
| HLF04C06 | 16 | 32 | 32 | 35 | 14 | 64 | 76 | 0.43 |
| HLF04C07 | 19 | 36 | 32 | 36 | 14 | 68 | 83 | 0.49 |
| HLF04C08 | 22 | 40 | 34 | 40 | 16 | 74 | 96 | 0.68 |
